Transparent drain protection allows responders to see spills are being stopped
A spill response drain cover is one of the easiest and most effective ways to stop a spill. But how can a responder know for sure that it’s working? Cracks in concrete and dents in grating can offer a “path of least resistance” to spilled liquids.
An opaque spill response drain cover will not allow a visual inspection of whether or not spilled liquids are finding ways around the protection. The Ultra-Drain Seal, Clear Model changes that.
- The clear material provides an unobstructed view of covered drains – enables responders to make sure a complete seal is made.
- No more guesswork about Drain Seal effectiveness – quickly see if spills are entering the drain through cracks in the surface, imperfections in the grating, or other irregularities that can break the seal.
- Reinforcing mesh is “sandwiched” between layers of polyurethane — increases durability and resistance to tearing.
- Unique, urethane construction allows the pad to deform and seal off most drains — temporarily “seals” to any smooth surface.
- Helps comply with SPCC and NPDES

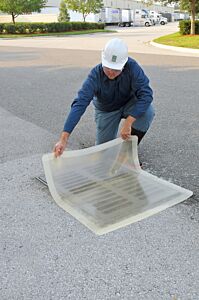

Ultra-Drain Seal Clear (Square)
| Part # | Dimensions in. (mm) | Weight lbs. (kg) |
|---|---|---|
| 2200 | 18 x 18 x 3⁄8 (458 x 458 x 10) | 5.0 (2.5) |
| 2201 | 24 x 24 x 3⁄8 (610 x 610 x 10) | 8.0 (3.5) |
| 2202 | 36 x 36 x 3⁄8 (915 x 915 x 10) | 20.0 (9.0) |
| 2203 | 42 x 42 x 3⁄8 (1,067 x 1,067 x 10) | 23.0 (10.5) |
| 2204 | 48 x 48 x 3⁄8 (1,220 x 1,220 x 10) | 36.0 (17.0) |
| 2205 | 54 x 54 x 3⁄8 (1,372 x 1,372 x 10) | 41.0 (18.5) |
Ultra-Drain Seal Clear (Rectangular)
| Part # | Dimensions in. (mm) | Weight lbs. (kg) |
|---|---|---|
| 2206 | 18 x 58 x 3⁄8 (458 x 1,474 x 10) | 16.0 (7.0) |
| 2207 | 36 x 58 x 3⁄8 (914 x 1,474 x 10) | 26.0 (12.0) |
Ultra-Drain Seal Clear (Circular)
| Part # | Dimensions in. (mm) | Weight lbs. (kg) |
|---|---|---|
| 2208 | 12 dia x 3⁄8 (305 dia x 10) | 3.0 (1.5) |
| 2209 | 20 dia x 3⁄8 (508 dia x 10) | 6.0 (3.0) |
| 2210 | 30 dia x 3⁄8 (762 dia x 10) | 11.0 (5.0) |
| 2211 | 42 dia x 3⁄8 (1,067 dia x 10) | 27.0 (9.0) |
